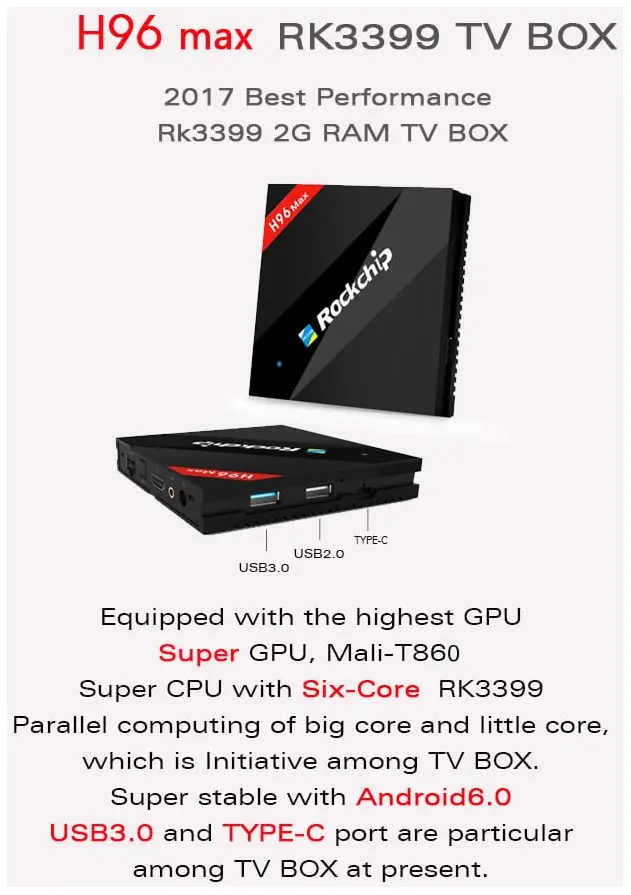

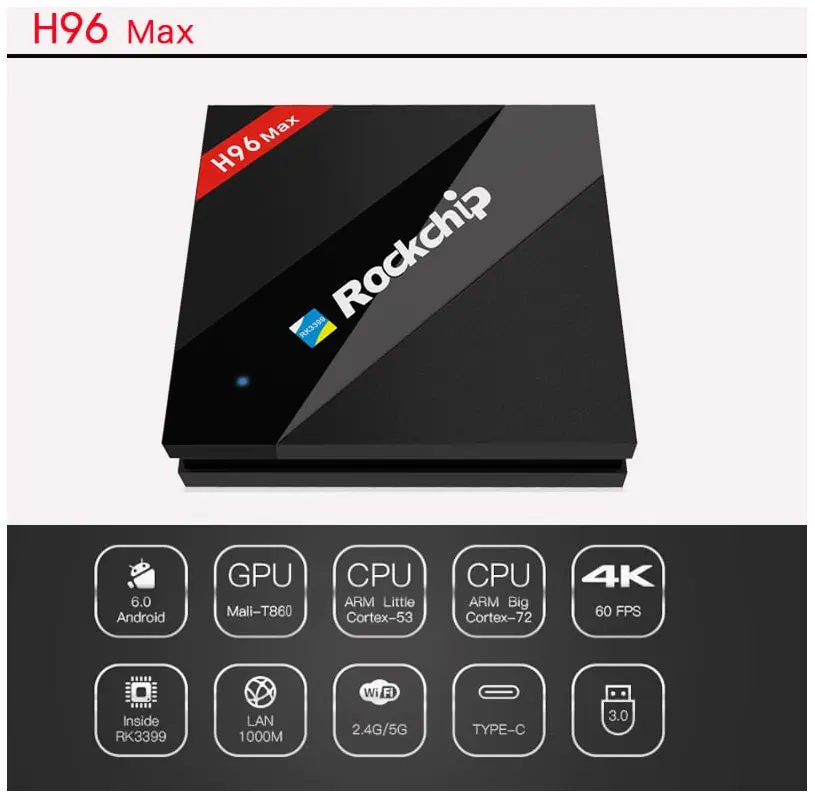

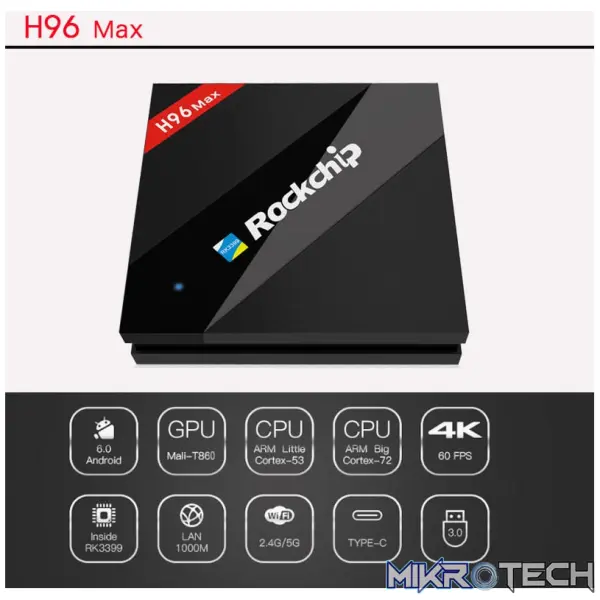

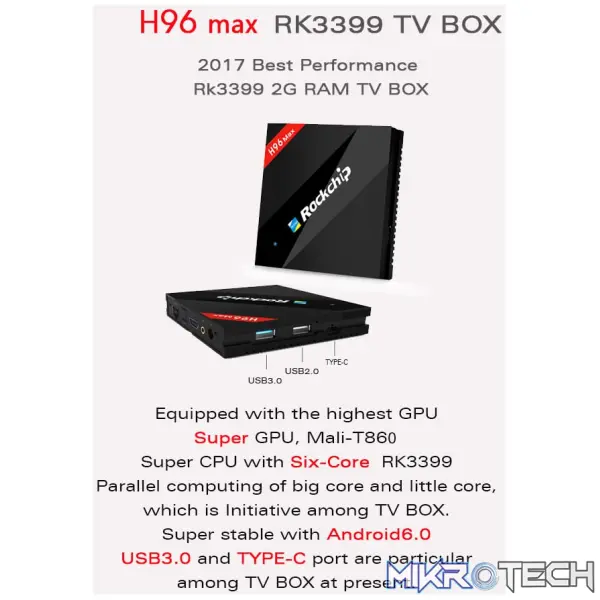

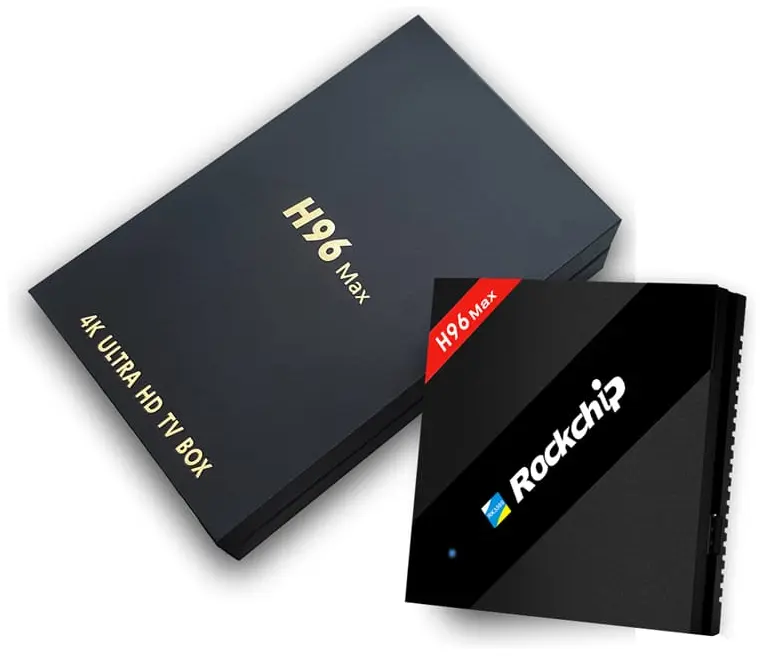

H96 MAX RK3399 Six Core 2GB DDR3 RAM 16GB ROM Android 6.0 2.4G 5.0G WiFi 1000M Gigabit LAN 4Kx2K 60fps Bluetooth 4.0 H.265 HEVC VP9 Android TV Box Mini PC
Features:
CPU: RK3399 Six Core 2.0G (Dual Cortex-A72+Quad Cortex-A53)
GPU: Mali-T860 GPU, Support OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11
RAM: 2G LPDDR3 Â
ROM: 16G Emmc5.1
OS: Google Android6.0. support OTA function
Ethernet: 10/100M/1000M LAN
WIFI: Support.802.11a/b/g/n/ac standard
Bluetooth: 4.0
Video Decode:Â Support 4K VP9 and 4K 10bits H.265 / H.264 video decoding, up to 60fps
Bluetooth: 4.0
Video Decode:Â Support 4K VP9 and 4K 10bits H.265 / H.264 video decoding, up to 60fps
Specifications:
System Config. | |
CPU | RK3399 Six Core 2.0G (Dual Cortex-A72+Quad Cortex-A53) |
GPU | Mali-T860 GPU, Support OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11 |
RAM | 2GÂ Â LPDDR3Â Â |
ROM | 16GÂ Â Emmc5.1Â Â |
Expand Memory | 1 x T-Flash, support max 64G |
Antenna | support WIFI external antenna |
Media | |
Video format | Support 4K x 2k resolution multi-format video decode, H.265 |
VPU | Support 4K VP9 and 4K 10bits H.265 / H.264 video decoding, up to 60fps |
Audio format | MP3/WMA/APE/FLAC/AAC/OGG/AC3/WAV |
Picture format | JPEG/ BMP/ GIF/ PNG |
Communication | |
Ethernet | 10/100M/1000MÂ LAN |
WIFI | Support.802.11a/b/g/n/ac standard |
AP6255 | |
Bluetooth | YES |
3G(4G) | Support for external 3G(4G) DONGLE |
Sensor/Motor | |
IRÂ Sensor | 1 x IR |
Indicator | |
Power LED | 2 x Blue power led, red led for standby, 2in1 |

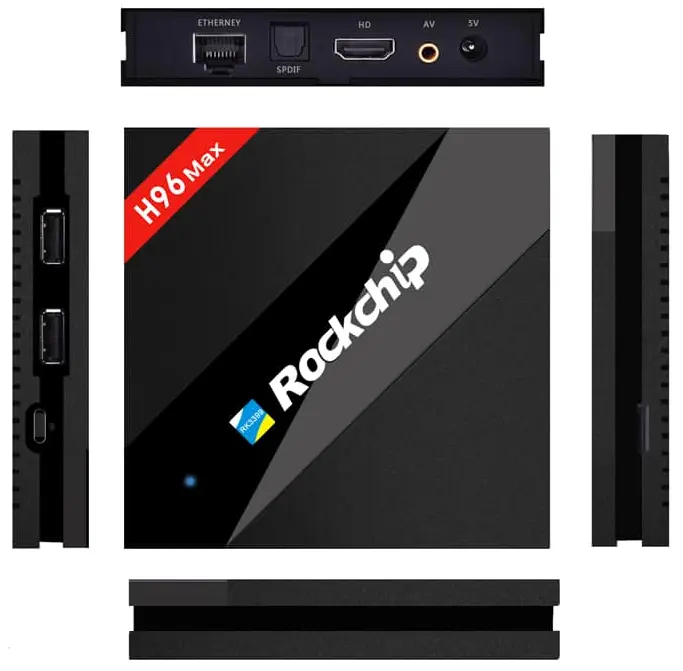

Button & Ports | |
Button | 1 x Power Button(physical button), control power on and off |
1 x Update Button(via one pin hole) | |

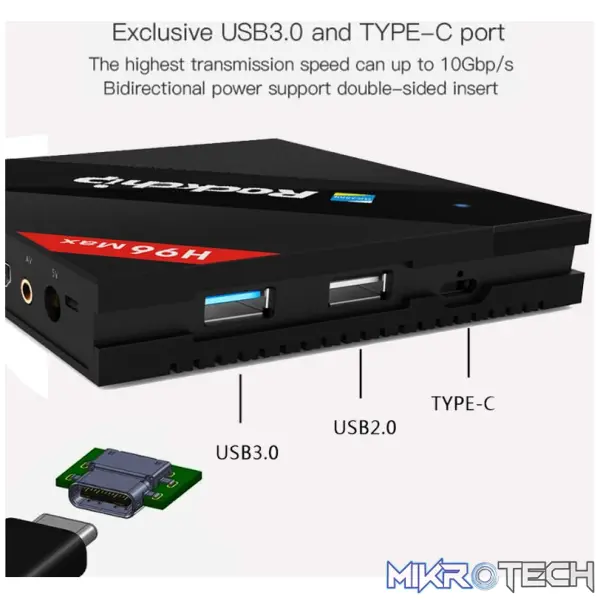

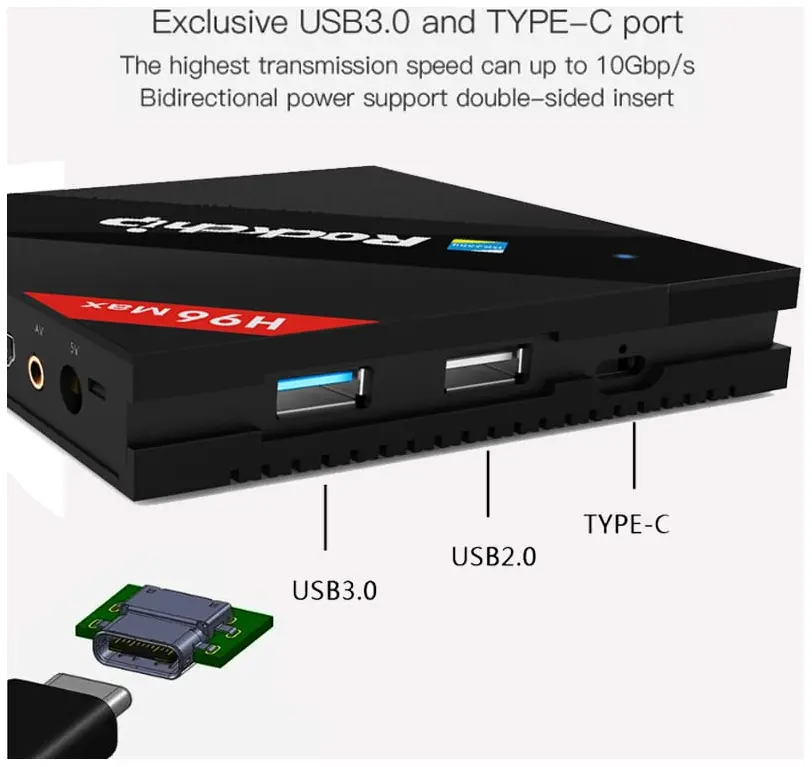

USB2.0 | 1 x Standard USB |
USB3.0 | 1 x Standard USB with OTG |
USB3.0 Type-C | 1 x Supports dual USB3.0 Type-C interface |
DC-in | 1 x DC in Jack |
HDMI | 1 x HDMI A Type 2.0 |
SPDIF | 1 x S/SPDIF (2CH,  5.1CH) |
RJ45 | 1 x RJ45 |
SD Card Slot | 1 x TF card slot |
Power management | |
Adapter | 5VÂ 2A |
Software Config. | |
OS | Google Android6.0. support OTA function |
Language | Multi-language |
Keyboard | Qwerty keyboard |
UI | Dual UI |
Features | |
Miracast/DLNA | Support |
XBMC | 4K/RMVB/DTS/DOLBY |

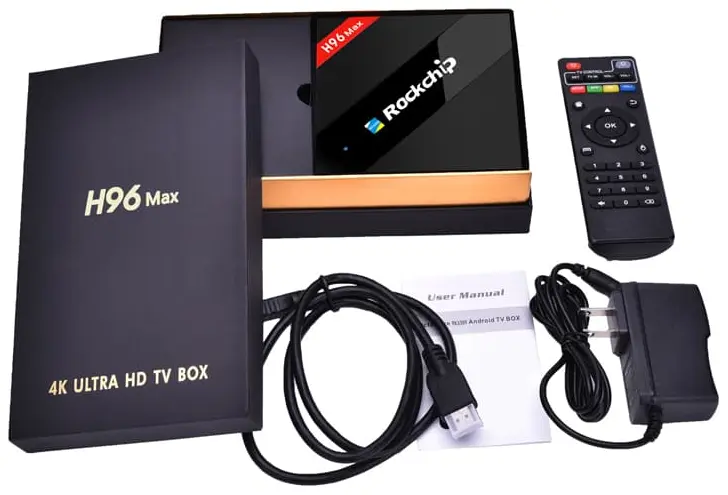

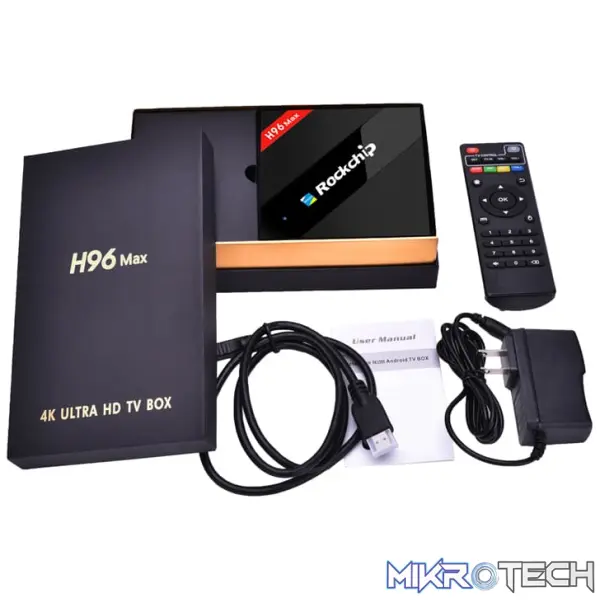

Package Includes:
1 x H96 MAX RK3399 2G/16G TV Box
1 x HDMI Cable
1 x Remote Control
1 x Power Adapter
1 x User Manual
